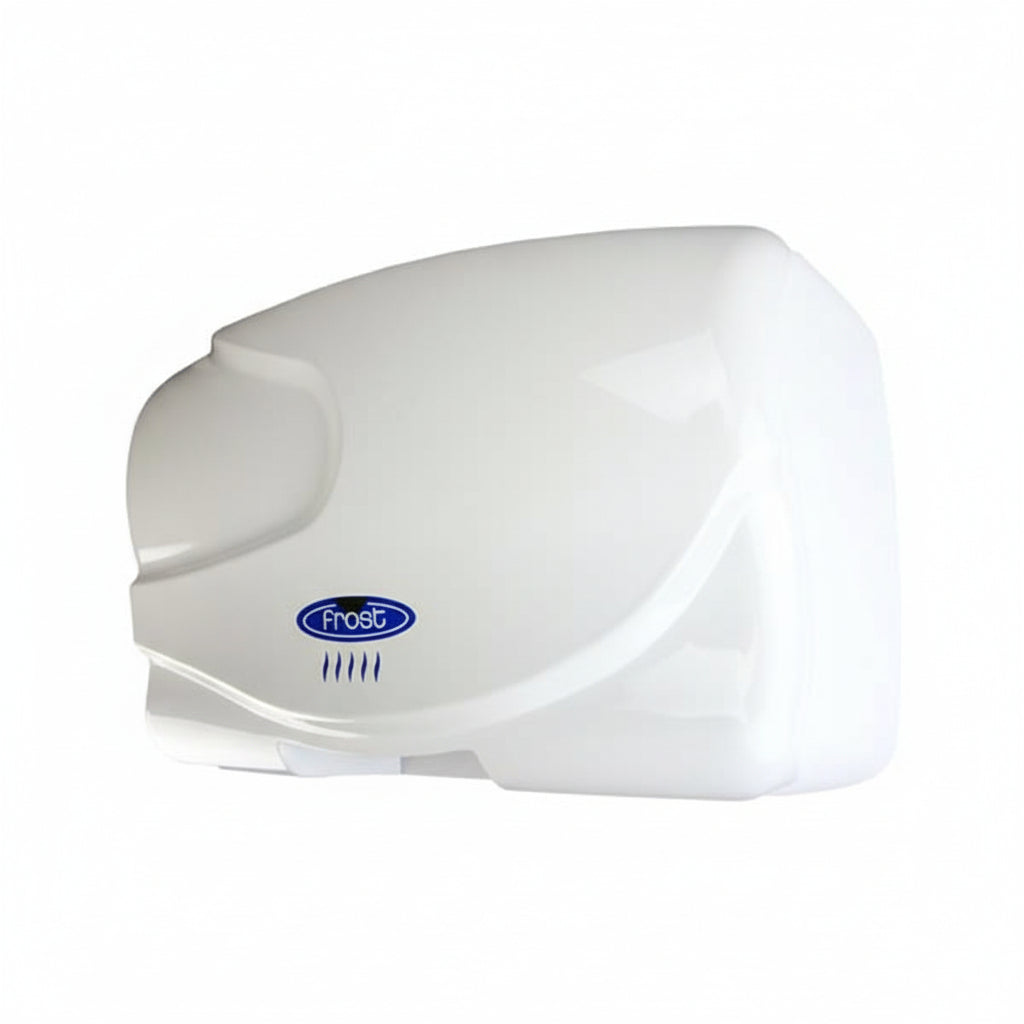

Frost 1187 Automatic Hand Dryer

Description

Frost 1187 Automatic Hand Dryer. Sensor detection range: 4″ (10 cm) to 12″ (30 cm). The automatic sensor activates when hands are placed under the unit within the detection zone. There is a 0.6-second delay before activation and a 2-second delay before deactivation. The power will automatically shut off after 120 seconds of abnormal use. The sensor will reset during normal use. The sensor is completely waterproof.

• 120 volts.

Features

• Air throw: 161 ft3/min (274 m3/h);
• Air speed: 16.5 m/s;
• Warranty: fully guaranteed for 5 years from the date of purchase;
• Shipping weight: 6.4 kg;
• Materials: cast aluminum with a painted or chrome finish;
• Specifications: drying time approximately 20 seconds;
• Voltage: 120 volts, 220 volts (the 220 volt model can be used at 208 volts with a frequency of 50-60 Hz);
• Power: 2200 watts;
• Noise level: 61-67 dB. 100 watt brushless motor with 3450 rpm.

Facility

Install the hand dryer at a height of 12″ (30 cm) above any fixed or removable object. For unobstructed access, ensure the bottom of the unit is no more than 48″ (120 cm) from the floor. Four threaded mounting anchors.

Interview

On the outside, the unit must be cleaned with soap and water, or with approved cleaning products or disinfectants. Additionally, on the inside, the motor and all mechanisms must be kept clean and free of dirt, dust, and any other debris. Failure to maintain the unit could result in reduced performance and void the warranty.
